16LC260 FLAT-TOP CRANE
Reach: 70 metres
Jib-end load: 2,150 kg + 10% with PowerLift
Maximum load: 10 or 12 t, depending on the version

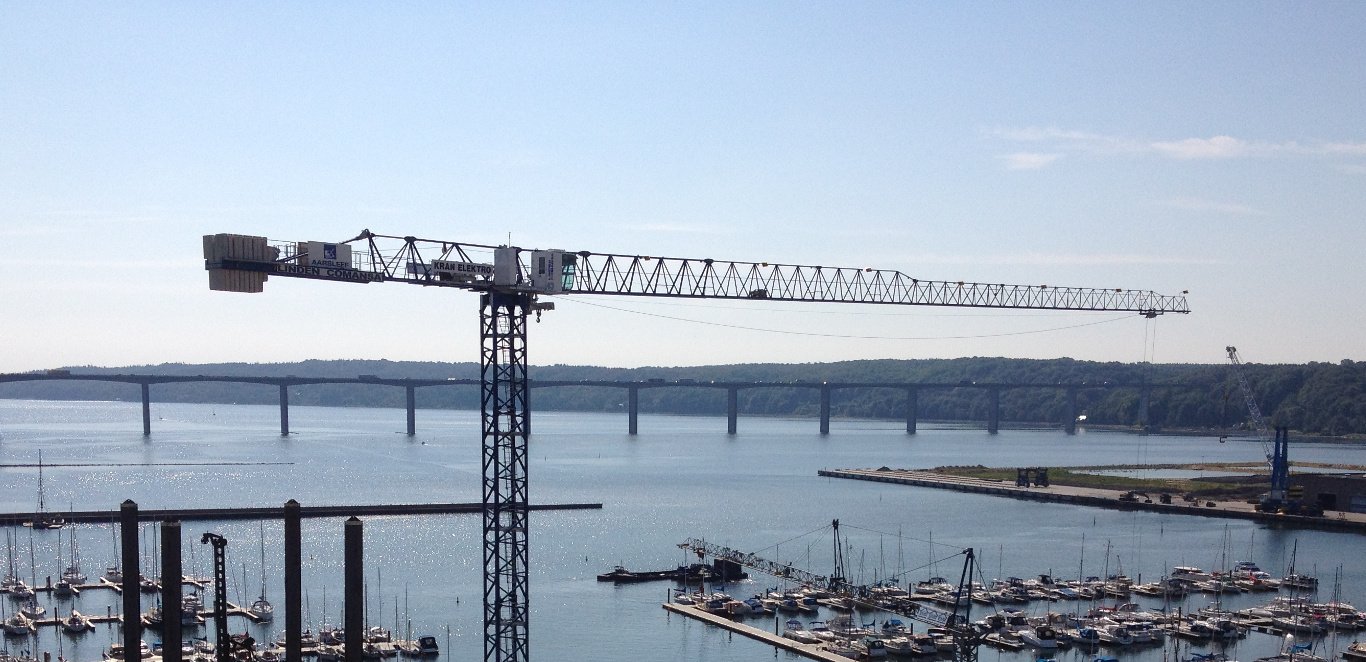

The 16LC260 flat-top crane has a maximum reach of 70 metres, a jib-end load of 2,150 kg and comes in two versions with a maximum load of 10 or 12 tonnes.
Just like the other cranes in the Series, the 16LC260 features the Comansadouble trolley system for maximum crane performance, whether it be hoisting heavier loads near the tower or a greater jib-end load at higher speed at the maximum radius.
All the hoist mechanisms available for this model (standard and optional) feature the Effi-Plus system, which ensures exceptional productivity thanks to its high hoist speed, as well as frequency control for better load control.
The 16LC260 comes standard equipped with the CUBE cab, which adds productivity, aesthetics and comfort to the work space.
TECHNICAL FEATURES
16LC260 10t
16LC260 12t
Maximum load
10t
12t
Reach
70m
70m
Jib-end load
Normal
2.150 kg
2.150 kg
PowerLift
2.360 kg
2.360 kg
Technical
data sheet
DT (Double Trolley) Double Trolley + Single Trolley version with automatic reeving change
RC (Reeving Change) Single Trolley, with manual change of reeving
ST (Single Trolley) Single trolley, with fixed reeving, no change
